P-MOD-W16
Art. no. 103031

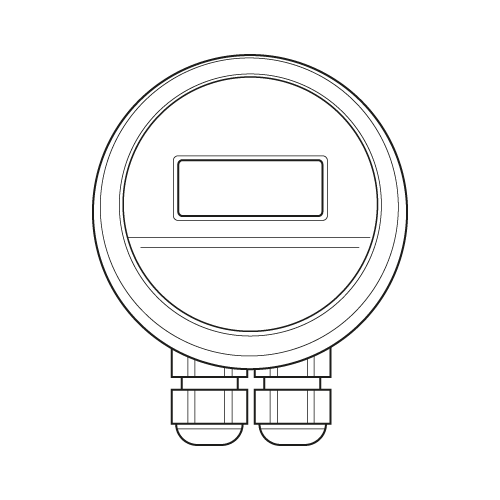

Pressure transmitter for water Output Modbus
""For measuring pressures in containers/pipes. For
non-corrosive media. Measuring range: 0 – 16 bar
and offset adjustable via rotary switch.
Tolerance: +/-0.1 bar at +25 °C and 8 bar. With
captive lid. 8 lid positions selectable. 5-point
calibration possible via optional display
""For measuring pressures in containers/pipes. For
non-corrosive media. Measuring range: 0 – 16 bar
and offset adjustable via rotary switch.
Tolerance: +/-0.1 bar at +25 °C and 8 bar. With
captive lid. 8 lid positions selectable. 5-point
calibration possible via optional display
Unit price
€262.90
Discountgroup: ARG01
Pressure transmitter for water Output Modbus
""For measuring pressures in containers/pipes. For
non-corrosive media. Measuring range: 0 – 16 bar
and offset adjustable via rotary switch.
Tolerance: +/-0.1 bar at +25 °C and 8 bar. With
captive lid. 8 lid positions selectable. 5-point
calibration possible via optional display
""For measuring pressures in containers/pipes. For
non-corrosive media. Measuring range: 0 – 16 bar
and offset adjustable via rotary switch.
Tolerance: +/-0.1 bar at +25 °C and 8 bar. With
captive lid. 8 lid positions selectable. 5-point
calibration possible via optional display
| Measured medium 1: |
Water |
|---|---|
| Measured medium 2: |
Air |
| Measured medium 3: |
Noncorrosive fluids |
| Measuring range 1: |
0...16 bar (adjustable) |
| Permissible temperature of medium 1: |
-25…+85 °C |
| Protection type: |
IP65 |
| Sensor element 1: |
Piezoresistive pressure transducer |
Datasheet 13300 - OPP-SENS® Pressure transmitter for water P-...
Flyer OPP-SENS® NFC
Catalog 2025 (PDF)
Flip catalogue 2025
EG-Konformität_OPP-SENS_2016-04-20 (only German)
Technical data
| Measured medium 1: |
Water |
|---|---|
| Measured medium 2: |
Air |
| Measured medium 3: |
Noncorrosive fluids |
| Measuring range 1: |
0...16 bar (adjustable) |
| Permissible temperature of medium 1: |
-25…+85 °C |
| Protection type: |
IP65 |
| Sensor element 1: |
Piezoresistive pressure transducer |
Downloads
Datasheet 13300 - OPP-SENS® Pressure transmitter for water P-...
Flyer OPP-SENS® NFC
Catalog 2025 (PDF)
Flip catalogue 2025
EG-Konformität_OPP-SENS_2016-04-20 (only German)
M12-BUS-SET-01 Option
""for OPP-SENS BUS transmitters
Supplied scope: 1 x metal input connector M12-BUS
1 x metal output coupling M12-BUS Assembly input
connector and output coupling. Connecting 5 x
lead with wire end ferrule (24 V+, GND, BUS A,
BUS B, screen) for output coupling. Connecting 5
x lead with wire end ferrule (24 V+, GND, BUS A,
BUS B, screen) for input connector. Final
functional test.
Data sheet no. 20920
Supplied scope: 1 x metal input connector M12-BUS
1 x metal output coupling M12-BUS Assembly input
connector and output coupling. Connecting 5 x
lead with wire end ferrule (24 V+, GND, BUS A,
BUS B, screen) for output coupling. Connecting 5
x lead with wire end ferrule (24 V+, GND, BUS A,
BUS B, screen) for input connector. Final
functional test.
Data sheet no. 20920
M12-BUS-START-2M
Starter cable for M12-BUS OPP-SENS M12 accessories
Connection from the DDC to the first transmitter 5
x lead with wire end ferrule, 2 m 5-wire screened
cable, 1 x M12 coupling
Data sheet no. 20920
Connection from the DDC to the first transmitter 5
x lead with wire end ferrule, 2 m 5-wire screened
cable, 1 x M12 coupling
Data sheet no. 20920
M12-BUS-CON-0,5M
Connecting cable for M12-BUS OPP-SENS M12 accessories
For interconnecting transmitters or as extension
cable. 5-wire screened cable, 1 x M12 coupling, 1
x M12 plug, cable length 0.5 m.
Data sheet no. 20920
For interconnecting transmitters or as extension
cable. 5-wire screened cable, 1 x M12 coupling, 1
x M12 plug, cable length 0.5 m.
Data sheet no. 20920
M12-BUS-CON-1M
Connecting cable for M12-BUS OPP-SENS M12 accessories
For interconnecting transmitters or as extension
cable. 5-wire screened cable, 1 x M12 coupling, 1
x M12 plug, cable length 1m.
Data sheet no. 20920
For interconnecting transmitters or as extension
cable. 5-wire screened cable, 1 x M12 coupling, 1
x M12 plug, cable length 1m.
Data sheet no. 20920
M12-BUS-CON-2M
Connecting cable for M12-BUS OPP-SENS M12 accessories
For interconnecting transmitters or as extension
cable. 5-wire screened cable, 1 x M12 coupling, 1
x M12 plug, cable length 2 m.
Data sheet no. 20920
For interconnecting transmitters or as extension
cable. 5-wire screened cable, 1 x M12 coupling, 1
x M12 plug, cable length 2 m.
Data sheet no. 20920
M12-BUS-CON-5M
Connecting cable for M12-BUS OPP-SENS M12 accessories
For interconnecting transmitters or as extension
cable. 5-wire screened cable, 1 x M12 coupling, 1
x M12 plug, cable length 5 m.
Data sheet no. 20920
For interconnecting transmitters or as extension
cable. 5-wire screened cable, 1 x M12 coupling, 1
x M12 plug, cable length 5 m.
Data sheet no. 20920
M12-BUS-CON-10M
Connecting cable for M12-BUS OPP-SENS M12 accessories
For interconnecting transmitters or as extension
cable. 5-wire screened cable, 1 x M12 coupling, 1
x M12 plug, cable length 10 m.
Data sheet no. 20920
For interconnecting transmitters or as extension
cable. 5-wire screened cable, 1 x M12 coupling, 1
x M12 plug, cable length 10 m.
Data sheet no. 20920
M12-BUS-EXT-2M
Wall cable for M12-BUS OPP-SENS M12 accessories
Connects transmitter through wall, etc. onto
customer-installed box 5 x lead with wire end
ferrule, 2 m 5-wire screened cable, 1 x M12 plug
Data sheet no. 20920
Connects transmitter through wall, etc. onto
customer-installed box 5 x lead with wire end
ferrule, 2 m 5-wire screened cable, 1 x M12 plug
Data sheet no. 20920
M12-BUS-CAP
Protective cap for M12-BUS OPP-SENS M12 accessories
Termination cap (dust protection) for last
transmitter. Fits on M12 coupling.
Data sheet no. 20920
Termination cap (dust protection) for last
transmitter. Fits on M12 coupling.
Data sheet no. 20920
D-NFC - Display OPP-SENS
Display & control unit. With NFC interface and capacitive button.
Fits all round sensor connection heads with active
outputs. The unit is fitted with ribbon cable and
a reverse polarity-protected connector on the
electronics board and is ready for use without
configuration (autoadapt). The corresponding
measuring values for the respective transmitter
are automatically displayed. The unit has a
capacitive push button. The display has an NFC
interface. With bus transmitters, all parameters
such as bus addresses, baud rate, etc. can be
configured directly. The 5-point calibration is
also performed via this unit. IP 65 protection
due to the integrated seal. For configuration and
calibration: Multiple sensors can be configured
successively using one unit and then closed and
operated with the normal cover. Used as actual
value display: The display permanently replaces
the cover. Data sheet: 20902
Fits all round sensor connection heads with active
outputs. The unit is fitted with ribbon cable and
a reverse polarity-protected connector on the
electronics board and is ready for use without
configuration (autoadapt). The corresponding
measuring values for the respective transmitter
are automatically displayed. The unit has a
capacitive push button. The display has an NFC
interface. With bus transmitters, all parameters
such as bus addresses, baud rate, etc. can be
configured directly. The 5-point calibration is
also performed via this unit. IP 65 protection
due to the integrated seal. For configuration and
calibration: Multiple sensors can be configured
successively using one unit and then closed and
operated with the normal cover. Used as actual
value display: The display permanently replaces
the cover. Data sheet: 20902
D - Display OPP-SENS
Display & control unit can be illuminated. With autoadapt and capacitive buttons.
Fits all round sensor connection heads with active
outputs. The unit is fitted with ribbon cable and
a reverse polarity-protected connector on the
electronics board and is ready for use without
configuration (autoadapt). The corresponding menu
for the transmitter is automatically displayed.
The unit is illuminated (only with 3-wire
connection) and has capacitive buttons. The
lighting duration, contrast and temperature
settings can be adjusted via the menu. With bus
transmitters, all parameters such as bus
addresses, baud rate, etc. can be configured
directly. The 5-point calibration is also
performed via this unit. IP 65 protection due to
the integrated seal. For configuration and
calibration: Multiple sensors can be configured
successively using one unit and then closed and
operated with the normal cover. Used as actual
value display: The display permanently replaces
the cover. Data sheet: 20902
Fits all round sensor connection heads with active
outputs. The unit is fitted with ribbon cable and
a reverse polarity-protected connector on the
electronics board and is ready for use without
configuration (autoadapt). The corresponding menu
for the transmitter is automatically displayed.
The unit is illuminated (only with 3-wire
connection) and has capacitive buttons. The
lighting duration, contrast and temperature
settings can be adjusted via the menu. With bus
transmitters, all parameters such as bus
addresses, baud rate, etc. can be configured
directly. The 5-point calibration is also
performed via this unit. IP 65 protection due to
the integrated seal. For configuration and
calibration: Multiple sensors can be configured
successively using one unit and then closed and
operated with the normal cover. Used as actual
value display: The display permanently replaces
the cover. Data sheet: 20902
